Hot Sale Self-Lubrication GEBJ25S Ball Radial Rod End Bearing Spherical Plain Bearing 254731

Brand Name : SFT

Model Number : GE45ES 2RS

Place of Origin : China

MOQ : negotiable

Price : negotiable

Payment Terms : L/C, T/T, Western Union, MoneyGram

Supply Ability : 50000PCS/MONTH

Delivery Time : 20-45DAYS

Packaging Details : carton,pallet

Application : Oil cylinder,Excavator, Trucks , other machinery

ID : 12-320

OD : 22-520

Lubrication : PTFE

Material : Steel/Steel and Steel/PTFE fabric material

Thickness (mm) : 74

Single gross weight : 0.022-225

Contact Now

Features of Maintenance Free Radial Spherical Plain Bearing

Radial spherical plain bearings have an inner ring with a sphered convex outside diameter and an outer ring with a correspondingly sphered but concave inside surface. Their design makes them particularly suitable for bearing arrangements where alignment movements between shaft and housing have to be accommodated, or where oscillating or recurrent tilting or slewing movements must be possible at relatively slow sliding speeds.

• Extended Inner ring eliminating need for locating spacers.

• Sliding surface: Steel on Steel - MoS2 treated.

• Single fracture design.

• Relubricatable through annular grooves and oil holes in inner & outer rings (ES- Suffix)

SPECIFICATION
Model	GEBJ...S
Material	Stainless Steel / PTFE
Inner diameter	5-30 mm
Outer diameter	13-55mm
ball width	8-37mm
Model Available	GE, GEES2RS, GAC, GEC, GEG, GEZ, GEEM, GET, ......
Application	Agricultural machinery, Shock absorber, etc
Package	Tube, carton box, wooden box, pallet
Delivery time	1 day for sample, 3-5 day for medium order, 10-20 day for big order quantity
OEM	Accept
Payment terms	TT, L.C, D/A, D/P, Western Union, Paypal

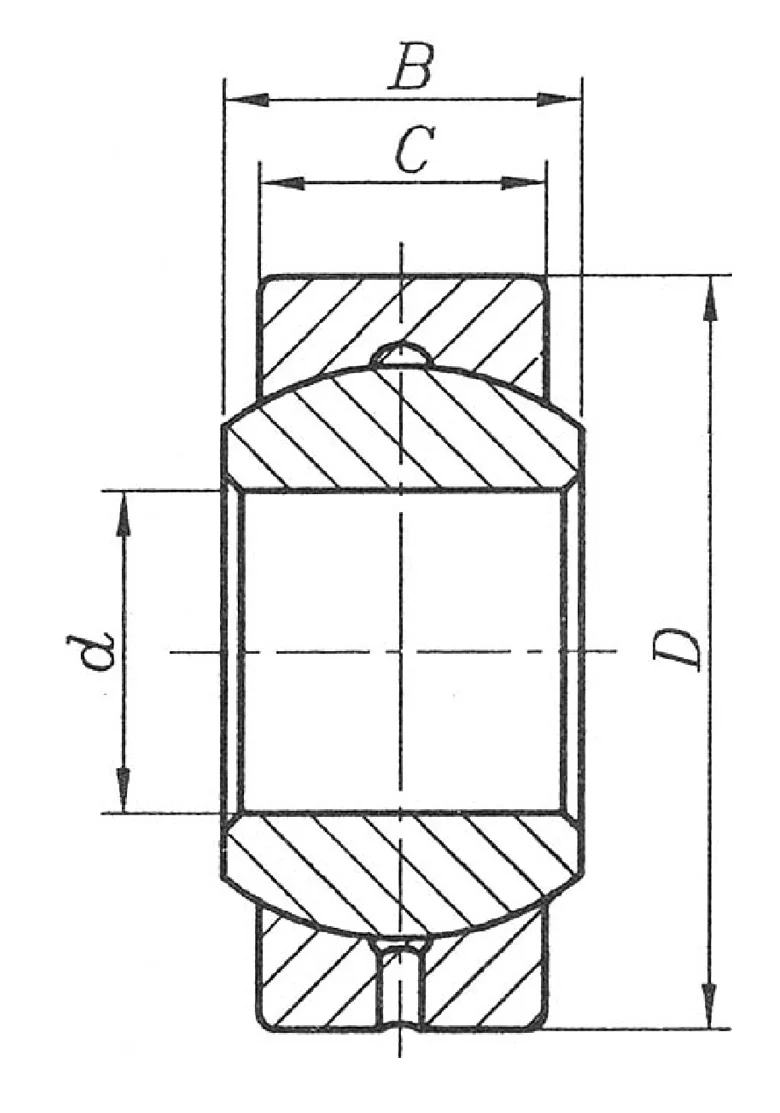

GEBJ... Spherical Plain Bearing

No.	Designation	d	D	B	C	Dynamic	Static	Weight
						load	load	(Kg)
						(KN)	(KN)
1	GEBJ5S	5	13	8	6	3.2	9	0.006
2	GEBJ6S	6	16	9	6.75	4.1	12	0.01
3	GEBJ8S	8	19	12	9	6.5	20	0.018
4	GEBJ10S	10	22	14	10.5	9.6	28	0.027
5	GEBJ12S	12	26	16	12	12	37	0.043
6	GEBJ14S	14	28	19	13.5	16	49	0.055
7	GEBJ16S	16	32	21	15	20	61	0.081
8	GEBJ18S	18	35	23	16.5	25	74	0.103
9	GEBJ20S	20	40	25	18	30	89	0.149
10	GEBJ22S	22	42	28	20	36	108	0.176
11	GEBJ25S	25	47	31	22	45	130	0.242
12	GEBJ30S	30	55	37	25	61	178	0.378
